Stretch wrapping

ROBOBAND 1VH

ROBOBAND 1VH

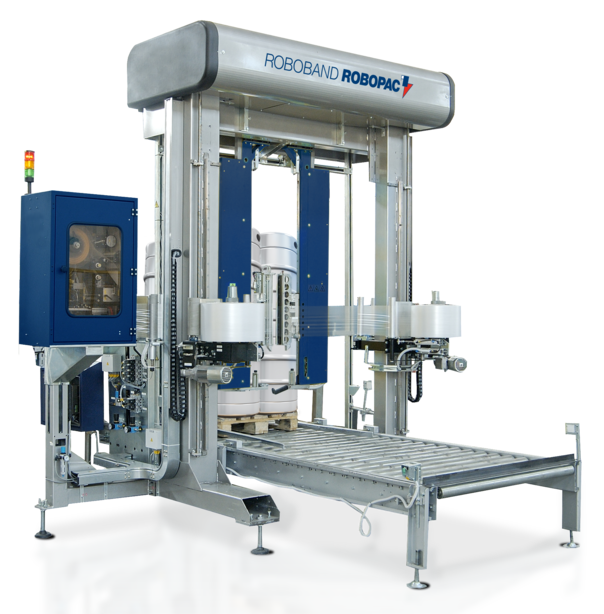

Automatic end-of-line machine for the application of a stretch film band for labelling purposes.

ROBOBAND 1VH
OUTPUT CAPACITY UP TO 150 P/H
OUTPUT CAPACITY UP TO 150 P/H
SINGLE PAIR OF REELS
SINGLE PAIR OF REELS
ADJUSTABLE SEALING
ADJUSTABLE SEALING

product benefits

PARTIAL BANDING

Suited to applications where is needed to secure a stack of products not requiring an overall containment

PRE-LABELLING

Possibility to add a labelling machine for product identification

FULLY AUTOMATIC MOVEMENTS

High precision movements controlled by PLC

QUICK AND FLEXIBLE SETUP

Quick and easy replacement of most components

STANDARD EQUIPMENTS

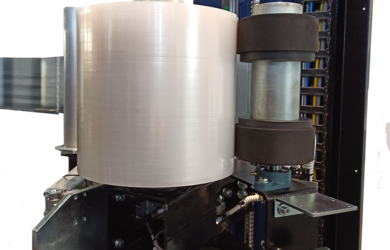

MFDS - PRE-STRETCH CARRIAGES
MFDS - PRE-STRETCH CARRIAGES

Motor-driven carriage controlled by clutch for unstable loads

overview

Fully automatic banding machine particularly suitable for applications where label application on the product is very challenging due to product shape.

ROBOBAND Fully automatic horizontal banding machine.

Pallet dimensions min - max mm

600x800 - 1300x1100

  inches 24x32 - 52x44
Maximum pallet height mm

2000

  inches 80
Height of the supply line mm 250 - 550   inches

10 - 22

Standard power supply voltage and frequency V - Hz

400-415 ± 5% - 50 ± 1%

Optional power supply voltage and frequency V - Hz

380-480 ± 5% - 60 ± 1%

Compressed air pressure Bar

6 ± 1

Film reel height mm

100 - 500

  inches 4 - 20
Max reel diameter mm

500

  inches 20
