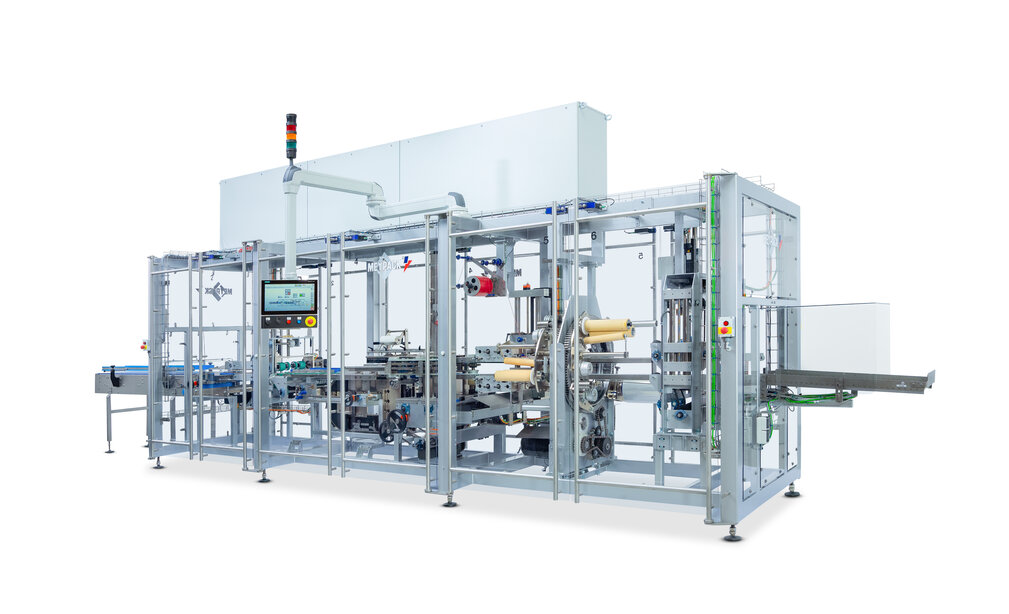

Meypack FW200 Horizontal stretch-film wrapper

The compact, hygienic design of Meypack’s FW Series strecth film wrapping systems makes it ideally suited to food industries and for frozen or chilled products typically within a folding box/carton.

Erecting, stacking, and grouping of lying and standing products
Continuous wrapping with pre-stretched film
continuously operating cutting system featuring a thermal knife

product benefits

efficient packaging for transport
Easy opening concept: laser perforation and integrated tear-off strip
only one width of film for all formats

Details

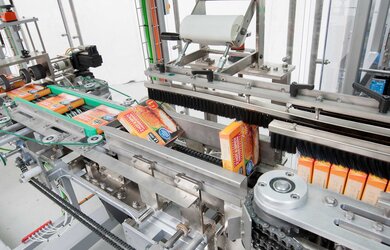

Product infeed paddle chain

Arriving products, typically in cartons, arrive laying down from the cartoning machine and are erected into an upright position using a servo driven paddle chain system. Here the products are counted and collated into the required number for the pack

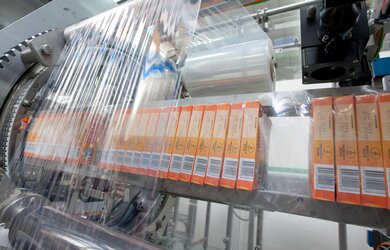

Product collating without heat

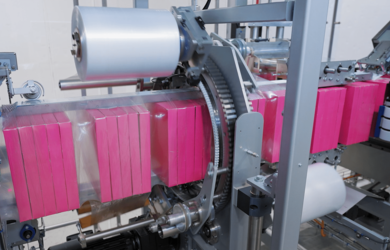

The film rolls, which are positioned opposite each other, can achieve an output of up to 60 film packs per minute.

overview

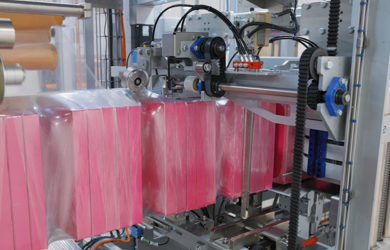

The Meypack stretch-film technology is particularly appropriate when the customer’s priority is packaging for transport. The FW Series stretch-film wrappers use very thin film. Without any external use of energy, which is otherwise necessary in the shrink wrapping process in the shrink tunnel, the film is wrapped two to three times around the product formation. In this way, the pre-stretched film (with an adjustable stretch ratio) is fitted very tightly around the products to be packed, creating a highly stable pack. An electrically heated servo-driven film cutting device separates the packs in a very clean and defined manner.

To be able to quickly remove the film easily at the point of sale without the need for additional tools, the machine can be equipped with a laser perforation system – the so-called “Easy Opening System” – which creates a tearoff strip of film. The FW Series is available for speeds of up to 60 cycles per minute.
