DIMAC STAR ONE Compact shrink-wrappers for medium-speed productions

STAR ONE machines, compact in design but technologically advanced, are the right solution for customers that need a compact machine with minimum footprint.

produced by

AVAILABLE WITH BASIC SEPARATION SYSTEM OR B.I. ALTERNATE SEPARATION SYSTEM

OUTPUT CAPACITY: UP TO 30 PPM

TYPES OF PACKAGING: FILM ONLY, PAD AND FILM, TRAY AND FILM

PACKAGING MODELS

DIMAC STAR ONE

The STAR ONE machines are available in the following versions:

STAR ONE BASIC: up to 20 packs/minute

STAR ONE B.I: up to 30 packs/minute

Depending on the set-up, this series can realise all the classic secondary packaging solutions.

DIMAC STAR ONE F	DIMAC STAR ONE P	DIMAC STAR ONE T

packs with film only	packs with flat pad and film	packs with tray and film

product benefits

high quality

High quality standards.

compact

Compact machine.

top level electronic

Top Level Eletronic.

easy

Ease of use and maintainance.

STANDARD EQUIPMENTS

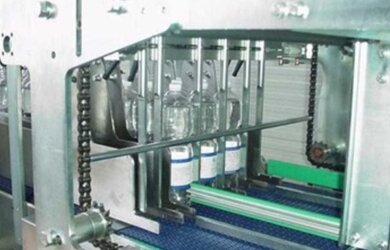

Basic Separation up to 20 ppm

Alternated separation system made up of "tines" that shift laterally thanks to a pneumatic downward movement and let the preset number of products through. Suitable for cylindrical products with a good consistency.

B.I. Separation up to 35 ppm

This system is composed of a metal conveyor mesh that guarantees the execution of the configuration required through a start/stop system. An upper pneumatic press stabilises the product in the post-separation stage.

Touch screen display

Colour touch screen display fitted as standard on all DIMAC machines. It gives operators the possibility of managing all machine parameters and keeping all its functions under control.

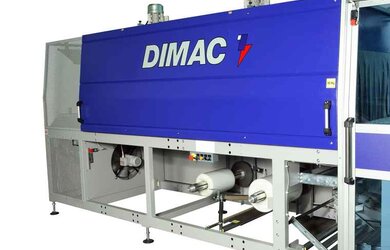

Heat Shrink Tunnel

Conveyor voltage is maintained constant by a counterweight in the final part of the tunnel. The tunnel is equipped with external regulation to optimise air flow according to the different configurations.

overview

Dimac Star One series offer a really high technology level. The “Top Level” electronic STAR ONE machine control allows high production performances. STAR ONE series machines are designed for easy operator use. In fact, the touch screen panel can be used to control all machine parameters and production statistics, manage and modify sizes and control tunnel temperatures. STAR ONE machines are predisposed to be connected with a centralised net for production data management. The STAR ONE can be reached via modem to permit problem diagnosis, program settings and upgrades.

DIMAC STAR ONE

option & data sheet

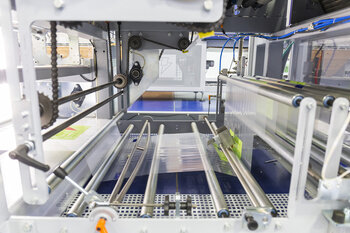

PRINT REGISTRATION DEVICE

Able to run with film total print or spot marks.

DATA SHEET

Standard Technical Features

MODELS		STAR ONE	BASIC	20 PPM	STAR ONE	BI	30PPM
MODELS	single lane	F	P	T	F	P	T
Overall lenght A	mm inches	7925 312.0	7925 312.0	9700 381.9	8575 337.6	8575 337.6	10350 407.5
Machine widht (+main electrical cabinet) B	mm inches	1200/ 47.2/63	(+45) (+17.7)	1200 (+45) 47.2 (17.7)
Working height C	min/max mm min/max inches	1070-1365 42.1-53.7	1070-1365 42.1-53.7	1070-1365 42.1-53.7	1070-1365 42.1-53.7	1070-1365 42.1-53.7	1070-1365 42.1-53.7
Total power	kW	44	44	49	44	44	49
Air consumption	NI/min	100	100	100	100	100	100
Air pressure	bar	6	6	6	6	6	6
