PRASMATIC TC 500/600 SHRINKShrink-wrappers for medium to high-speed productions
The TC 500/600 shrink-wrapping machines range is the best solution for medium to high-speed productions in end-line packaging.
Depending on the machine model, the type of packaging and characteristics of the product, the packaging speed of the TC 500/600 ranges from 55 to 65 packages/min.
The TC machines with shrink-wrapping technology are available in the following versions:
TC 500: up to 55 packs/minute
TC 600: up to 65 packs/minute
Depending on the set-up, this series can realise all the classic secondary packaging solutions with film.
PRASMATIC TC C
PRASMATIC TC CF
PRASMATIC TC CW
packs with film only
packs with flat pad and film
packs with tray and film
product benefits
ERGONOMIC
Extremely ergonomic design.
FLEXIBLE
Maximum flexibility and efficiency.
ADAPTABLE
Easily adaptable to a wide range of production lines.
HMI
Userfriendly and wide touchscreen panel.
SAFE
Our top-brand brushless servomotor drives guarantee the highest safety and quality.
EASY MAINTENANCE
The led lighting and the sliding doors facilitate the access for cleaning and maintenance operations.
STANDARD EQUIPMENTS
Continuous Product Separation
Separation system with electronic control for medium and high speed. Product separation is carried out through a double pair of teeth, with infeed between the products from the bottom. It is easy to make adjustments during format changes.
Film Reels
Various film reel positioning solutions are available, the ergonomics are particularly well-designed. Better access for format change operations and reel sealing means excellent man-machine interaction.
Machine Frame
Completely revisited, it is designed to offer multiple modular solutions based on machine configuration. The new frame offers better access to all of the units to operate the machine, change formats and perform maintenance.
overview
Depending on the set-up, this machine series can realise all the classic secondary packaging solutions with film.
PRASMATIC TC 500/600 SHRINK WRAPPING
Fast Feed 90° HIGH SPEED INFEED SYSTEM
option & data sheet
FAST FEED
FAST FEED: 90° infeed system. It avoids the use of lane divider and metering section at packer infeed. It improves hygienic design, simplifies change overs and improves flexibility in line layout design and machine compactness. It can be integrated with 90° and 180° package rotation device for facing or cap orientation inside the pack collations.
AUTOMATIC FORMAT CHANGE
For models with automatic format change, switching to the new format is carried out electronically through brushless motors, in most cases there is no need for tools or for the machine to be manned by the operator. Format change operations are carried out simply from the operator panel.

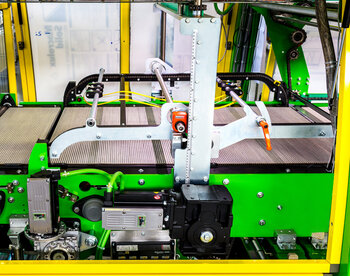

PRODUCT WRAPPING
The implemented technical solutions offer great flexibility and high dimensional excursion of the product during winding from one format to another. This unit boasts multiple configuration solutions.
REMOVABLE FILM UNIT
The system offers easy access to the film unit, for quick and efficient maintenance. This application is particularly suited for liquid product sectors, such as dairy and beverage, where the primary packaging may break, possibly soiling the film.
RETRACTABLE COLLATING PLATE
This solution offers high flexibility for the range of formats that can be produced, it also offers an excellent compromise when switching from tray packaging to packs with heat-shrink film only, and vice versa. The pneumatically-actuated surface offers the possibility of producing trays with high edges, it is particularly suited for the production of full height trays.
WASH DOWN EXECUTION
The Wash down application is particularly dedicated to all those sectors that require high hygiene quality standards, especially the dairy sector.
Automatic reel change
The system seals and cuts the film in a fully-automated fashion without any operator intervention, this option makes it possible to continue without stopping film unwinding and the production cycle. The reel configuration is set up by the operator, through simple manual procedures.
Partial or full stainless steel
According to the customer's needs it possible to have a partial or a total stainless steel execution for the machine frame.
Easy film
External film group for reel loading that grants better access for format change operations and reel sealing means excellent man-machine interaction. The external reels option also offers automatic reel-change.
Technical tables downloads
STANDARD TECHNICAL FEATURES
Blanks magazine capacity
400-1600 according to thickness and magazine type
Max blank length
1250 mm according to the speed and the machine model
Max blank width
650 mm
Max reel diameter
500 mm
Max reel width
720 mm
Max reel weight
80 Kg
Average size changeover time
10 ÷ 25 min. according to the machine model
(*) Values are purely theoretical. We recommend contacting Prasmatic to assess the specific values for each project according to the products and materials used.
