DIMAC NOVA 50/60 Shrink wrappers for high-speed productions

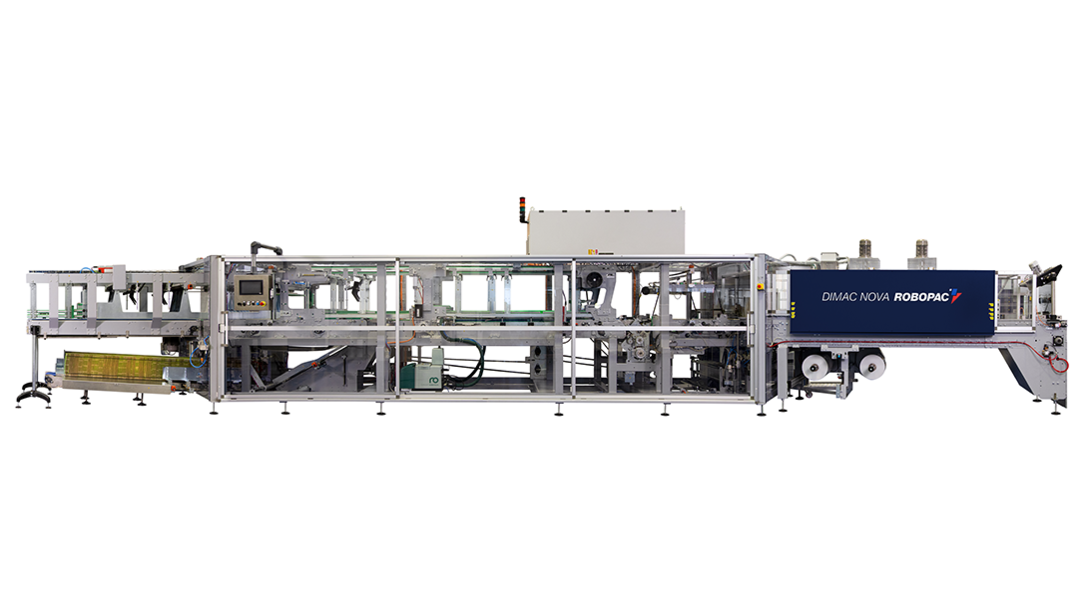

DIMAC NOVA 50/60

Dimac Nova is the range of shrink-wrapping and tray forming machines developed by Robopac, designed to have maximum flexibility and ease of use & maintenance for operators.

DIMAC NOVA 50/60
FILM FEEDING AND CUTTING GROUP COMPLETELY ACCESSIBLE
OUTPUT CAPACITY: UP TO 65 PPM
TYPES OF PACKAGING: FILM ONLY, PAD AND FILM, TRAY AND FILM, TRAY ONLY

PACKAGING MODELS

DIMAC NOVA 50/60

Depending on the set-up, this series can realise all the classic secondary packaging solutions with film and carton tray.




DIMAC
NOVA 50/60 F

DIMAC
NOVA 50/60 P

DIMAC
NOVA 50/60 T

DIMAC
NOVA 50/60 TX

packs with film only

packs with flat pad and film

packs with tray and film

packs with tray only

product benefits

flexible

Maximum flexibility

easy

Ease of use and maintenance

modular design

Designed in an extremely modular way

possible options

Possibility of adding options

STANDARD EQUIPMENTS

Wide machine frame
Wide machine frame

Full length sliding doors for complete visibility and accessibility. 2/3 of the machine length open. The electrical cabinet is integrated on top of the machine frame.

Touch screen display
Touch screen display

Wide and user-friendly touch screen display. It gives operators the possibility of managing all machine parameters and keeping all its functions under control.

Led lighting
Led lighting

Led lighting of the working area to facilitate cleaning and maintenance operations.

Film unit
Film unit

Easy accessibility to the film unit thanks to the swinging conveyor. In case of film vacuum table, the accessibility to the film group is granted by an extractable unit.

overview

This machine family  is designed in an extremely modular way, both in terms of packaging types and possibility of adding options, that can eventually be added in the future in an absolutely scalable way.

Dimac Nova 50

option & data sheet

High Performance Shrink Tunnel

The tunnel is equipped with external regulation to optimise air flow according to the different configurations. Conveyor voltage is maintained constant by a counterweight in the final part of the tunnel. It is possible to have the H.P. standard shrink-tunnel for normal tasks and the H.P. plus for enhanched tasks.

High Performance Shrink Tunnel

REMOVABLE FILM UNIT

The system offers easy access to the film unit, for quick and efficient maintenance. This application is particularly suited for liquid product sectors, such as dairy and beverage, where the primary packaging may break, possibly soiling the film.

REMOVABLE FILM UNIT

Automatic reel change

The system seals and cuts the film in a fully-automated fashion without any operator intervention, this option makes it possible to continue without stopping film unwinding and the production cycle. The reel configuration is set up by the operator, through simple manual procedures.

 Automatic reel change

Automatic format change

Format change operations are carried out simply from the operator panel. The switch to the new format is carried out electronically through brushless motors.

Automatic format change

Double layer stacker unit

This is a fully scalable option that allow you to stack two layers of product, the unit can be configured differently based on the type of product or the packaging solution.

Double layer stacker unit

Easy film

External film group for reel loading that grants better access for format change operations and reel sealing means excellent man-machine interaction. The external reels option also offers automatic reel-change.

Easy film

Standard Technical Features

Total length mm F 6765 - P 6765 - T 8444
Machine width (+ electric panel) mm 1563
Worktop height mm 1050 - 1150
Caratteristiche Elettriche Standard (*)
Total power Kw F 42 - P 42 - T 42
Caratteristiche pneumatiche standard (*)
Air consumption Nl/min 20 - 100
Air pressure BAR 6
(*) Values are purely theoretical. We recommend contacting Dimac to assess the specific values for each project according to the products and materials used.
