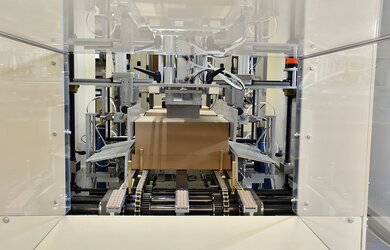

Wrap Around Tray and lids Automatic case-packer to wrap products starting from a flat blank
Wrapping machine with compact dimensions for speed up to 20 strokes/minute, running in intermittent motion, available in different configurations including the combined version (Tray + Film or tray + lids)
product benefits
DETAILS
option & data sheet
adjustment of package size by servomotors
Easy and fast adjustment of package size by centralized handwheels (standard) or by servomotors (optional).
Automatic partition dispenser system
Possibility to combine it with an automatic partition dispenser system
Divider
Divertor to channel non regular/shaped products into the correct lanes.
Wide range of versions suitable to accept up to 200 products/min.
Infeed placed at 90° to the flow of the machine
Version with in-feed placed at 90° to the flow of the machine. Version available with *one or more in-feed lanes; depending on the incoming speed of the products and the requested collation.
Infeed in line and parallel to the flow of the machine
Version with the infeed in line and parallel to the flow of the machine. Version available with *one or more in-feed lanes depending on the incoming speed of the products and on the requested collation.
Stacking system via pick&place
Stacking system via pick&place
Technical features
Power requirement | kW | 9 |
Air consumption | Nl/min | 200 |
Working pressure | bar | 6 |
Pneumatic | Camozzi | |
PLC | Siemens S7 / 1500 | |
Display | Siemens KTP / 700 | |
Magazin capacity | 300 (3mm) | |
Hot melt | Robatech Concept B | |
Performance | packs/min | Up to 20 packs/min |
Technical features
Power requirement | kW | 15 |
Air consumption | Nl/min | 200 |
Working pressure | bar | 6 |
Pneumatic | Camozzi | |
PLC | Siemens S7 / 1500 | |
Display | Siemens KTP / 700 | |
Magazin capacity | 300 (3mm) | |
Hot melt | Robatech Concept | |
Performance | packs/min | Up to 15 packs/min |
