Dimac Laser

Dimac Laser

LASER machines are sealing bar wrapping machines suitable for low-speed packaging and logistic packs. Laser wrapping machines have an innovative design and guarantee high-performances and good reliability.

Dimac Laser
EASY INSTALLATION AND USE
OUTPUT CAPACITY: UP TO 20 PPM
TYPES OF PACKAGING: Film, pad and film, tray and film, tray only

PACKAGING MODELS

Dimac Laser

Depending on the set-up, this series can realise all the classic secondary packaging solutions.




DIMAC
LASER F

DIMAC
LASER P

DIMAC
LASER T

DIMAC
LASER TX

packs with film only

packs with flat pad and film

packs with tray and film

packs with tray only

product benefits

design

Innovative design

easy

Ease of use and installation

reliability

High performances and great reliability

HMI

Userfriendly touchscreen panel

STANDARD EQUIPMENTS

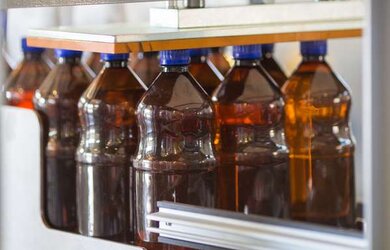

Alternated Separation
Alternated Separation

this system works by creating a gap between the products that are being fed and the pre-set format. It is possible to adjust feeding guides using a counter wheel (optional) to speed up format changing operations.

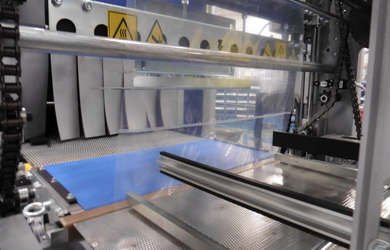

Sealer
Sealer

The sealed film coming from the upper and lower reels is stretched vertically. As the product moves forward, the film unrolls and wraps the processed product. The upper press is located after the sealing unit and keeps the product stable.

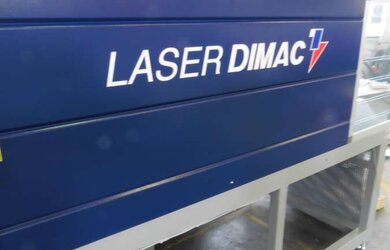

Heat Shrink Tunnel
Heat Shrink Tunnel

The tunnel is equipped with external regulation to optimise air flow according to the different configurations. Conveyor voltage is maintained constant by a counterweight in the final part of the tunnel.

overview

These Shrink wrapping machines were designed to be easily installed and used by operators (diagnoses and format changes) and to enable a better monitoring of the machine parameters through the touch-screen display. A lot of attention was also paid to the sealing and film cutting stage, as the sealer height can be adjusted for the best results depending on the type of products to process. The tunnel is insulated (energy saving) for the perfect heat shrinkage of the product.

DIMAC LASER

STANDARD TECHNICAL FEATURES
