Dimac Starwrap Wrap-around case packers for medium-speed productions

Starwrap machines are created to form complete cartons from flat blanks. The Starwrap is a machine with input and output placed on two levels. Cartons are formed when the product is lowered through a plate controlled by a mechanical cam.

produced by

AVAILABLE IN THE IN-LINE OR 90° VERSIONS

OUTPUT CAPACITY: UP TO 35 PPM

PACKAGES IN HIGH TRAY AND WRAP-AROUND CARTON

PACKAGING MODELS

Dimac Starwrap

The STARWRAP machines are available in the following versions:

STARWRAP R25: up to 25 packs/minute

STARWRAP R35: up to 35 packs/minute

Depending on the set-up, this series can realise all the classic secondary packaging solutions.

STARWRAP R-25 AND R-35

packs in high tray and wraparound carton

product benefits

reliable

Solidity, realiability, versatility and competitiveness.

optimize

Optimization of changeover time

blank magazine

High capacity blank magazine

downwards movement

Case formation with a downwards movement.

STANDARD EQUIPMENTS

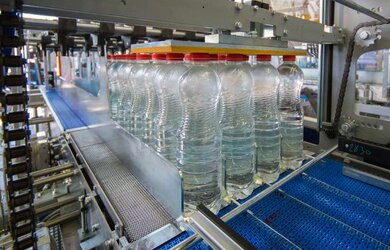

B.I. Separation

This system is composed of a metal conveyor mesh that guarantees the execution of the configuration required through a start/stop system. An upper pneumatic press stabilises the product in the post-separation stage.

Blanks Magazine

Blanks are picked up from the feeder by an arm with suction caps equipped with vacuum generators. After, the blanks are placed inside guides and transported below the product.

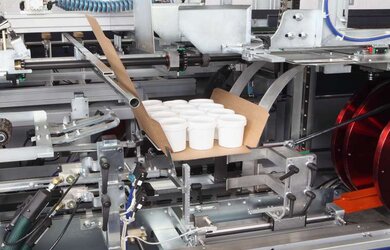

Carton formation system

An alternated-progress compartment conveyor transfers the cartons to the formation stages, that are: folding of the inner flaps, distribution of the hot-melt glue, folding of the upper part and losing of the external flaps.

overview

The "future of tradition" is the philosophy of the Starwrap cartoning machines series. Some of the highlights of this solution are solidity, reliability, versatility and competitiveness. Other main features are the B.I. separation system, optimization of change over times, high capacity blank magazine. Available also with 90° pneumatic infeed.

DIMAC STARWRAP

data sheet

Standard Technical Features

MODELS		R25 - 25 PPM	R35 - 35 PPM
overall lenght A	mm inches	6705 260	8140 320.5
machine widht (+main electrical cabinet) B	mm inches	2100 82.7	2100 82.7
working height inlet (min-max)	mm inches	1015 - 1515 39.9 - 59.6	1015 - 1515 39.9 - 59.6
working height outlet (min-max)	mm inches	490 - 990 19.3 - 39	490 - 990 19.3 - 39
total power	kW	7	7
air consumption	NI/min	250	250
air pressure	bar	6	6
