palletizing and depalletizing

low infeed

low infeed

Palletizer model groups share common functional modules and frame systems to provide comprehensive palletizer solutions. Shared modules maximize layout flexibility while reducing cost through increased manufacturing and machine controls efficiencies. Modular engineering means quality control and complete flexibility in the configuration of machine components. No customization is required with our low level palletizers. The orientation of induction and load exit meet your exact requirements.

low infeed
Up to 1-5 layers per minute
able to handle every product type
easy to use

KEY FEATURES

Modular Design

Palletizer model groups share common functional modules and frame systems to provide comprehensive palletizer solutions. Shared modules maximize layout flexibility while reducing cost through increased manufacturing and machine controls efficiencies.

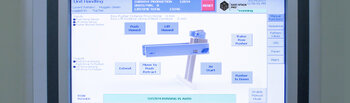

EasyStack® Software

TopTier palletizers can build any pallet pattern, with up to 99 patterns stored and instantly accessible. End users can easily create new patterns using the HMI touch screen common to both conventional and robotic models.

EuroDrive gear motors

EuroDrive gearmotors equipped with encoder feedback controlled by servo drives operating in VFD mode provide accurate and refined motion of all primary components.

AB 6" Color Touchscreen

Lower speed configurations

B&R 12" color touchscreen PC

Higher speed configurations

B&R Servo Drives

Higher speed configurations

overview

CONTROLS

TopTier palletizers combine the most recent advances in machine control technology with an intuitive interface HMI and EasyStack© pattern programming software. Low infeed conventional palletizer with the EasyStack interface is easy to use, regardless of user level of experience.

SAFETY

Safety has been integrated into every aspect of palletizer design to meet all industry standards utilizing a category 3 safety cage frame design with light curtain protection of load exit, redundant hoist fall protection, and controlled door entrance protocols. Operator safety when using our low infeed case palletizers is our highest priority. Additional safety information..

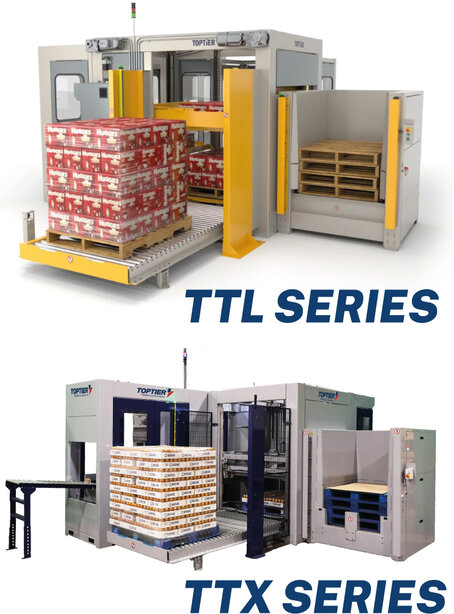

TopTier Low Infeed Palletizer

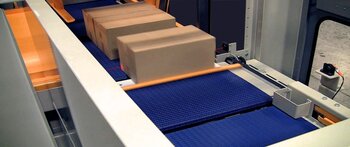

Perfect pattern sequence exclusive to TopTier palletizers
TOPTIER

速率  1-3 层隔板/分钟
进料高度 23" 至 60"
产品每种产品类型,包括箱、袋、有托盘、无托盘、开顶、有盖、缠绕过多或未缠绕、捆装货、嵌套、展示包、手提包等
最小箱尺寸4.5"
最大箱尺寸29"
最大箱高度18"
最大箱重量300lbs
最小层隔板尺寸38"
最大层隔板尺寸50"
标准货物高度60" 或 72"
最小占地面积162" x 115"

典型占地面积

233" x 155"
