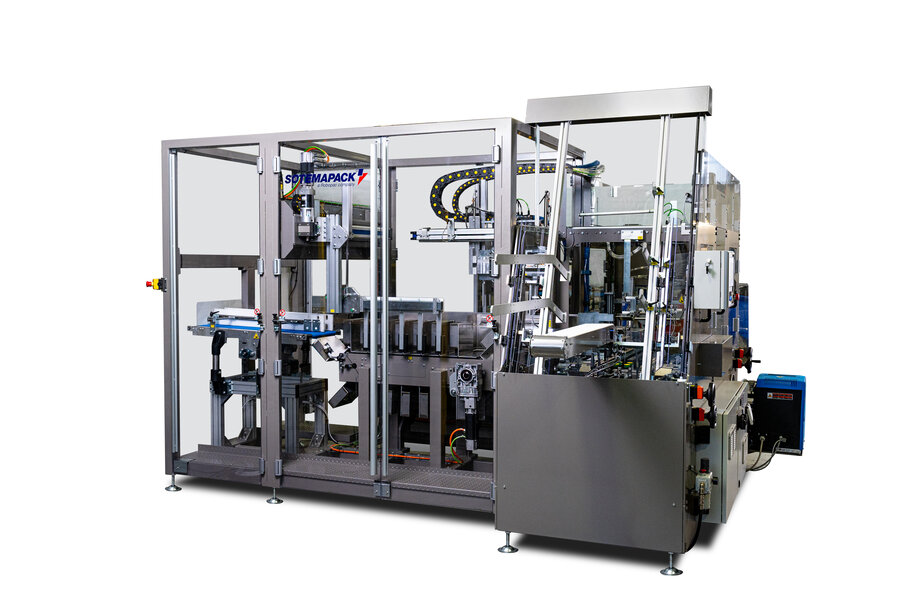

Wrap Around 20

Wrap Around 20

Wrapping machine with compact dimensions for speed up to 20 strokes/minute, running in intermittent motion, available in different configurations including the combined version (Tray + Film).

Wrap Around 20
Small footprint
High flexibility in the packaging range
Different infeeds available according to specific production requirements

DETAILS

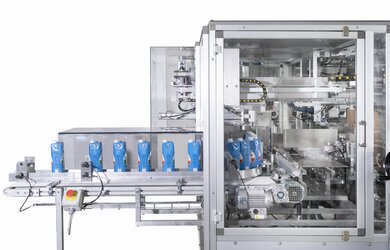

single-row feeding
single-row feeding

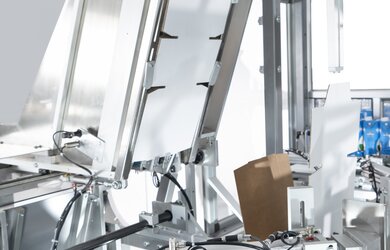

Carton storage unit
Carton storage unit

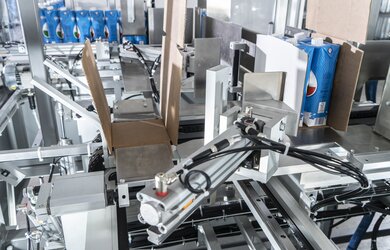

Carton forming area
Carton forming area

Wrap Around 20

option & data sheet

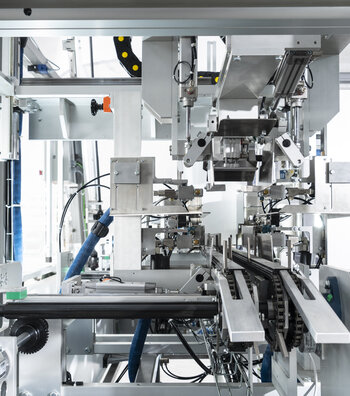

adjustment of package size by servomotors

Easy and fast adjustment of package size by centralized handwheels (standard) or by servomotors (optional).

adjustment of package size by servomotors

Automatic partition dispenser system

Possibility to combine it with an automatic partition dispenser system

Automatic partition dispenser system

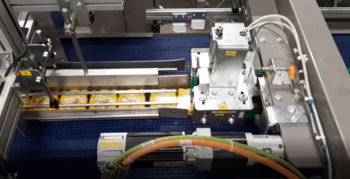

Divider

Divertor to channel non regular/shaped products into the correct lanes.
Wide range of versions suitable to accept up to 200 products/min.

Divider

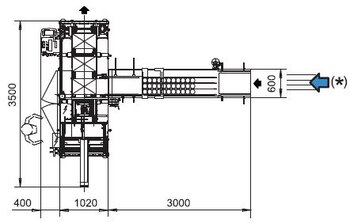

Infeed placed at 90° to the flow of the machine

Version with in-feed placed at 90° to the flow of the machine. Version available with *one or more in-feed lanes; depending on the incoming speed of the products and the requested collation.

Infeed placed at 90° to the flow of the machine

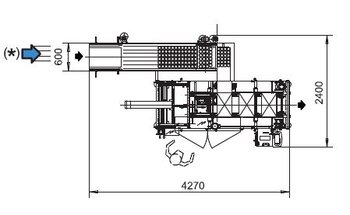

Infeed in line and parallel to the flow of the machine

Version with the infeed in line and parallel to the flow of the machine. Version available with *one or more in-feed lanes depending on the incoming speed of the products and on the requested collation.

Infeed in line and parallel to the flow of the machine

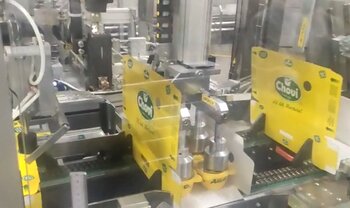

Stacking system via pick&place

Stacking system via pick&place

Stacking system via pick&place

Technical features

Power requirement kW 9
Air consumption Nl/min 200
Working pressure bar 6
Pneumatic   Camozzi
PLC   Siemens S7 / 1500
Display   Siemens KTP / 700
Magazin capacity   300 (3mm)
Hot melt   Robatech Concept B
Performance packs/min Up to 20 packs/min



brochure

download

case studies

NORSK KYLLING
Case studies
NORSK KYLLING

The supply request concerned 15 Sotemapack automatic packaging machines of the Wrap Around WA20 series. Thanks to the different solutions available, these machines are able to process a large quantity of products: thermoformed trays, flexible containers and flowpacks, packed in different types of secondary packaging.
