Scorpius

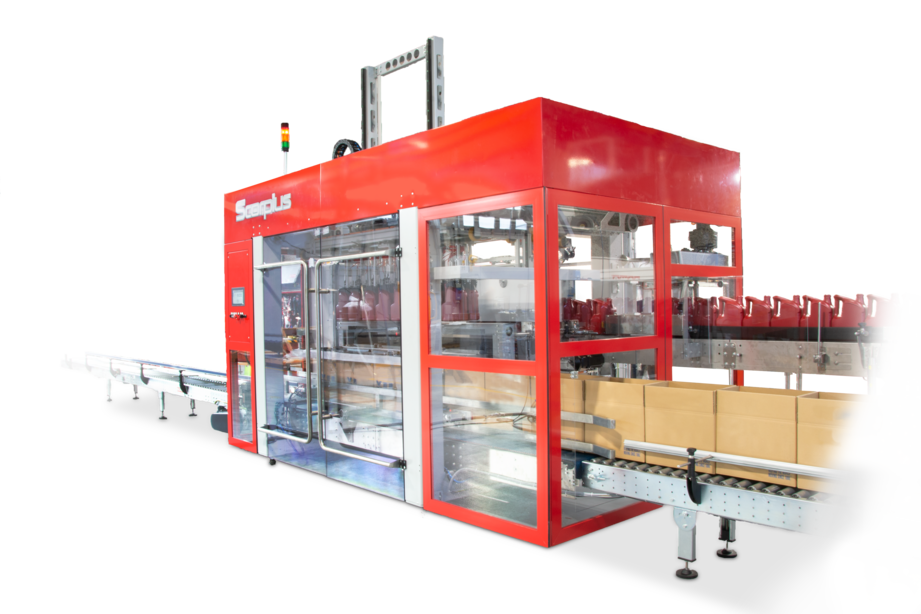

Scorpius   | © OCME

OCME, as leader in secondary packaging solutions, is present in that market as Pick & Place machine manufacturer to combine high performance, high quality in less footprint.

Scorpius   | © OCME
Perfect match between gripping heads and the containers
Easy and quick installation of the machine
2-in-1 extremely compact machine

product benefits

Movement designed and optimize by a "machine digital twin"
Fully electronic machine with brushless motors

Product processed

HDPE bottle square shaped
HDPE bottle square shaped

overview

The concept behind the design, is actually to have two machines in one: a divider – which split the infeed product in separate lanes according to the packaging pattern – and the pick & place cartoning unit.

Products enter che machine – in the staker unit - through a monofilar conveyor.

The exact amount of containers is properly dosed by rubber belts and moved from infeed to picking area where a cartesian manipulator, which is equipped with several picking grippers, picks up the containers and gently lays them down into the cartons.

To guarantee a very high picking efficiency, the grippers are shaped “around the container” in order to have the same exact negative geometry.

In that way it is possible to have a stiff picking avoiding any unwanted obscillation.
