palletizing and depalletizing

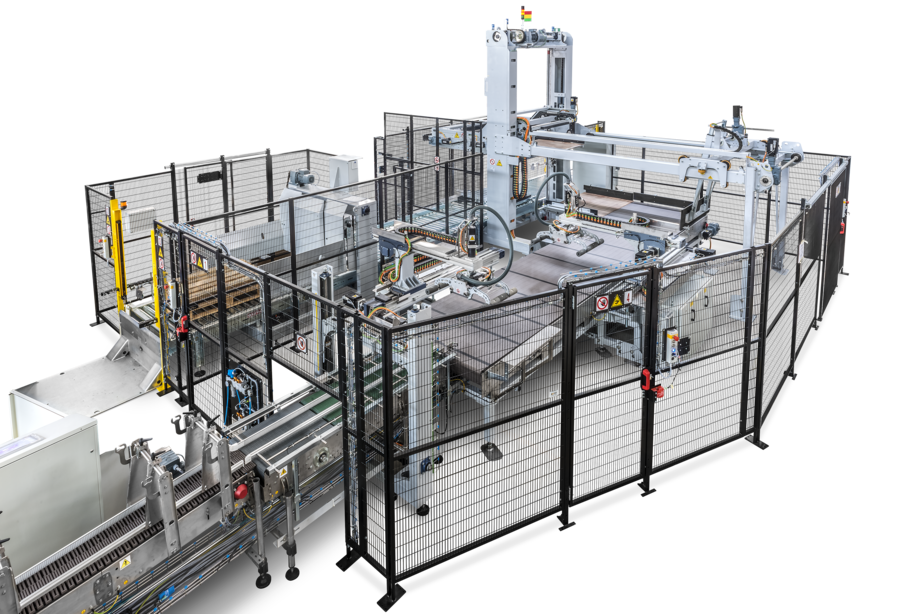

Perseus Palletizer with 90° infeed

Perseus | © OCME

Our traditional palletizer with 90° infeed is a multi-sector palletising solution, allowing high performance high energy saving. Depending on the chosen model, the product infeed level is low or high, with steady or moving pallet.

read more
Perseus | © OCME
Fully automatic
industry 4.0 ready
Extremely compact and sturdy
High speed

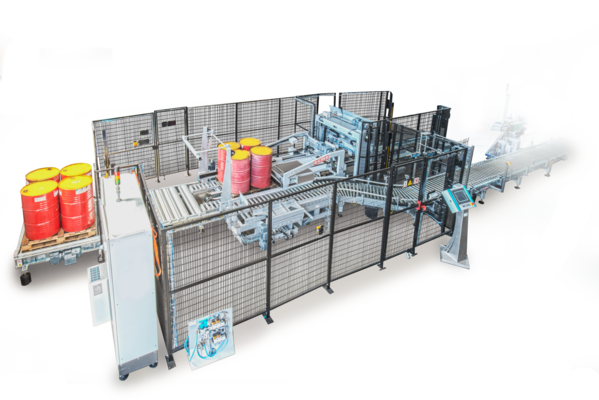

Perseus F

Perseus F model, specificly designed to process 60 L and 200 L drums.

Reach a maximum speed of 480 drums/hour

Perseus F | © OCME

product benefits

HMI user friendly
High level components complying with the highest safety standards
Machine operated by brushless motors
Suitable to use for various sectors
Possibility to process various types of packs

PROCESSED PRODUCTS

Tissue products
Tissue products
Package with bundle
Package with bundle
Cases
Cases
Cartons | © OCME
Cartons

overview

With the end of line machinery playing an increasingly strategic role, you need to ensure that your equipment meets the market’s demands and help you make the most out of every opportunity.

Once the layer has been formed, the product is transferred towards the machine by a pusher and placed onto the pallet, with the possibility to have flat pads being inserted.

The maximum speed reached by the Perseus N palletiser is 510 layers/hour, in the HM-N variant (high level product infeed and moving pallet). Instead, Perseus N, with the low level product infeed, reaches a maximum speed of 300 layers/hour.

The Perseus Z model, with the low level product infeed and steady pallet, reaches a maximum speed of 150 layers/hour.



option & data sheet

AUTOMATIC FEEDING SYSTEM FOR LAYER-PADS

The purpose of the operation is to insert the cardboard layer-pad in the correct position in the shortest possible time and without hindering the movement of other elements such as, for example, the robot palletiser arm.
The system guarantees great autonomy for feeding the layer-pad and is suitable for both traditional and robotic palletizing installations.

  • Pallet with stacked interlayer pads is positioned on the upper conveyor

  • The scissor lift progressively raises the stack to the correct gripping position

  • Column type or robotic type interacting gripper puts the pads between the layers during the palletising phases

The scissor lift descends to the lower level of the conveyor to eject the pallet at the end of the pads

  • Self-centring motorised side guides for intermediate pads

AUTOMATIC FEEDING SYSTEM FOR LAYER-PADS | © OCME

EMPTY PALLET INFEED SYSTEM

The empty pallet infeed system supplies the palletiser with empty pallets, so that this task needs not be carried out manually.

The system is designed to guarantee maximum flexibility in terms of variations in pallet size. flexibility in terms of variations in pallet size.

The system may be used with 4 forks instead of 2, so as to be able to use half-pallets (also called “demi-pallets”).

EMPTY PALLET INFEED SYSTEM

MIZAR Layer Forming system

The phase of pack rotating and layer forming has the purpose of arranging the packs according to a specific configuration required for the following phase of palletising in order to guarantee the highest stability of the pallet and the optimal number of products / layer.

Manipulators are designed to provide a high performance infeed to all types of palletisers: 90°, in-line and with robots.
The task of the manipulator is to translate and/or rotate the product to form and compact the layer, minimizing shocks or stress, especially for fragile or unstable products.
The layer forming system using manipulators is flexible and extremely precise, it can handle any type of pack, even the most delicate.
There are three variants of manipulators: Cartesian, robot or gantry manipulators.
All versions use brushless motorised gripping heads to guarantee maximum precision and optimal control of the clamping force.
The forming belt is driven by brushless motors to ensure maximum stability of the packs.
A significant differentiating element of the manipulators is the accessibility to each area of the system: in case of need, the operator can reach any point for any intervention in maximum safety.

MIZAR Layer Forming system

Program maker

Software that simplifies the creation of palletising pattern thanks to a mainly graphic structure.
Thanks to the engineering that develops the software for our products and a dedicated research and development department, we can offer an interface that allows our customer to create and modify the palletising programs.
This very intuitive system allows you to check the picking and depositing settings through previews generated on the screen that display the result of the settings before the machine is started.
Starting from two simple information, pack size and pallet type, the system generates a series of palletising schemes that are the starting point for the choice of the desired sequence.
The 3-D previews that accompany the entered settings facilitate the definition of the work to be done and allow you to make changes and verify the result in real time.
Further, the programming interface navigation is sequential, so you will need to  complete all the steps to get a new palletising program.

Program maker

Mizar Advance - Layer forming systems

Gantry layer forming system designed by OCME to enhance performance in layer forming processes to any palletiziers. Sustable for several products for food and beverage sectors.

Mizar Advance - Layer forming systems

brochure

download

case studies

DE CECCO APPOINTS OCME TO PROVIDE  THE FLEXIBILITY REQUIRED BY A GLOBAL FOOD LEADER
Case studies
DE CECCO APPOINTS OCME TO PROVIDE THE FLEXIBILITY REQUIRED BY A GLOBAL FOOD LEADER

In the production area of the Ortona plant, De Cecco turned to OCME with the request to maximise the efficiency of the palletising process while at the same time guaranteeing great flexibility (qualities which are widely desired in the food sector), in order to handle on demand line requirements
